Weaner flooring

Country of Origin:
China
Main Export Markets:

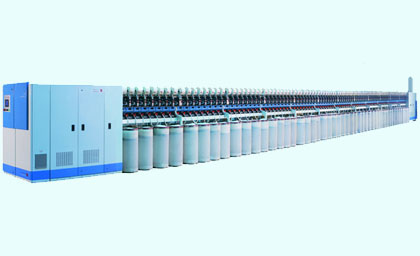

Rotor spinning machine series
Post Date :2008-12-09
Expire Date :2009-12-09

View Basket

Detailed Trade Lead Description
1.The minimum and Max tex:120~16(5-36)
2.Suitable tex:83.2~28(7~21)
3.Cotton to be Fed:2500~5000
4.Rotor speed(r/min):100000
5.Yarm guiding speed m/min:40~160
6.Splitting roll seppd:5500~9000
7.Twisting Degree:220~2250
8.Pneumatic moto Purging volume(m3h):5500
9.Suitable fiber length(mm):<40
10.Operating Height(mm):1560
11.Yarn Feeding Bobbin: Outer Dia:Φ400×914
12.Head space(mm):230
13.Rotor Diameter(mm):Φ36 or φ40
14.Head Number:192 or 240
15.Bobbin Specs (Outer Diameter*Height)(mm):Φ54×170
16.Take-up specs(Diameter*Height):Φ300×150
17.Loaded weight(kg):≈3
18.Crossing angle:300、330、350、390、420
19.Yarn breaking (Filament per 1000 filament per hour):≤50
20.Purification Efficiency:60~80
21.Pressure in Rotor intracavity:≥5
22.Mcchanical Stretching Times:32~220
23.Tension Stretching Times:0.93~1.06
24.Total power:64kw
