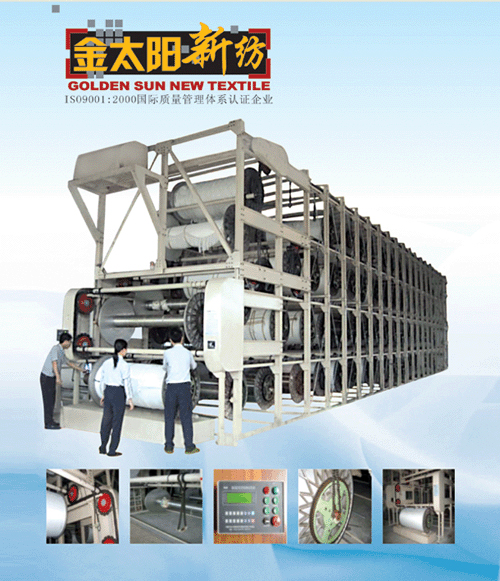

| WJK Series Warp Beam Micro-chip Controlled Storage Chambers |
| Post Date :2008-08-19 |
| Expire Date :2009-08-19 |
 View Basket |
| Detailed Trade Lead Description |
| Our products can be selected from a variety of types, depending on the customer's application for workroom space. It not only can be installed on th ground, but also can be embedded under the ground. Our warehousing type beam stacker have many types including single exit, single exit digging type, double exit, double exit digging type, a two-story type to load from the second floor and unload from the first, and so on.
Storage Layer: Two, Four, Six Layers
Storage Capacity: 26 ~ 120pcs
Diameter of Warp Beam or Batched Roll: φ500-φ1250
Width of Warp Beam or Batched Roll: Model 1500 ~ Model 3900
For each Store, we all installed a new control device which adopted film paneloperating and liquid crystal screen. Furthermore, we also adopted technology of single microprocessor to work with the cyc[oida[gear speed reducer, so that it can automatic continuous running in both positive and negative direction or manual operating mode, then the operation system wi[[select the shortest way and therefore automatic stop and starting up the beam stacker automatically.
On request of the customers it can be selective fitted with a computer contro system. When it's on the upper-beam state, this system can be inputted the detailed information of the yarn related to the each beam saved into the computer When it's on the lower-beam state, it is understand fully at glance. In addition, the system wi[[be automated running as long as you dick the computer for any specification the customer's required. This computer control, system al.so can connect to other computers to grasp of storaging data between each department, in order to achieve: production schedul.ing, pl.anned circul.ating, to strengthen modern management mode and improved work efficiency.
Mode of Upper-beam: According to the request, you can select Hydraulic Platforms or Hydraulic Tip Transport Cart.
储存量(只)
Storage capacity
织轴型号
Type of warp beam 外型尺寸 Overall Size(mm) 层数
Layer
长 Length 宽 Width 高 Height
30 Φ800×Model 1900
(L,=2200) 930 3000 4300 4
40 12000
50 15000
60 18000
70 21000
80 24000
100 30000
储存量(只)
Storage capacity
织轴型号
Type of warp beam 外型尺寸 Overall Size(mm) 层数
Layer
长 Length 宽 Width 高 Height
30 Φ1000×Model 1900
(L,=2200) 10650 3200 5200 4
40 14000
50 17350
60 20700
70 24050
80 27400
100 34100
储存量(只)
Storage capacity
织轴型号
Type of warp beam 外型尺寸 Overall Size(mm) 层数
Layer
长 Length 宽 Width 高 Height
70 Φ800×Model 1900
(L,=2200) 14300 3000 6500 6
80 16200
100 20000
|
|
|
