Weaner flooring

Country of Origin:
China
Main Export Markets:
Southeast Asia
South America
Africa

CL-A winding machine (Pagoda Type)
Post Date :2015-05-28
Expire Date :2015-11-04

View Basket

Detailed Trade Lead Description
CL Model winding machine has four series, i.e. A type pagoda, B type cylinder, C type cone and CL Model single-spindle winding machine (especially design for the thread dividing work in clothing plant and embroidery plant). Each series has been shaped into the effective length according to the balls with various specifications. The common specifications are 1.5 inch (38mm), 1.8 inch (45mm), 2 inch (50mm), 3 inch (75mm), 3.4 inch (85mm), 3.6 inch (90mm), 3.8 inch (95mm), 4 inch (100mm), 5 inch (125mm), 6 inch (150mm). It may also produce the special specifications goods according to the consumer's requirements.

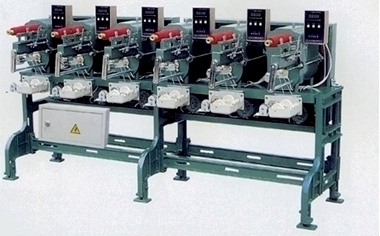

CL-A winding machine (Pagoda Type)

Function features:
It is equipped with the new generation computer measuring apparatus.
It is equipped with the thread break auto-stop device.
It is equipped with the electron tension and silicone oiling device.
It is equipped with the disconnecting automatic memory function.

4 "
5 "
6"
No of spindles
6spindle
6spindle
6spindle
Cone for each spindle
2
2
1 or 2
Thread Length
0-10000m
0-15000m
0-30000m or 1000g
Motor
380V/220V 50Hz 180WX6
Machine volume
2.25(or2.08)ML × 0.70MWX1.15MH/2.25(or2.08) ML×0.80MW× 1.15MH
Weight of the Machine
420Kg
Measurement
2.35(or2.17)ML×0.80MW×1.25MH/2.35(or2.17) ML× 0.90MW× 1.25MH
Weight
550Kg
