| Flat And Sequin And Cording Computerized Embroidery Machine(BLCYX-C112+JP612) |
| Post Date :2008-04-25 |
| Expire Date :2009-04-03 |
 View Basket |
| BLCYX-C112+JP612 |
| Detailed Trade Lead Description |

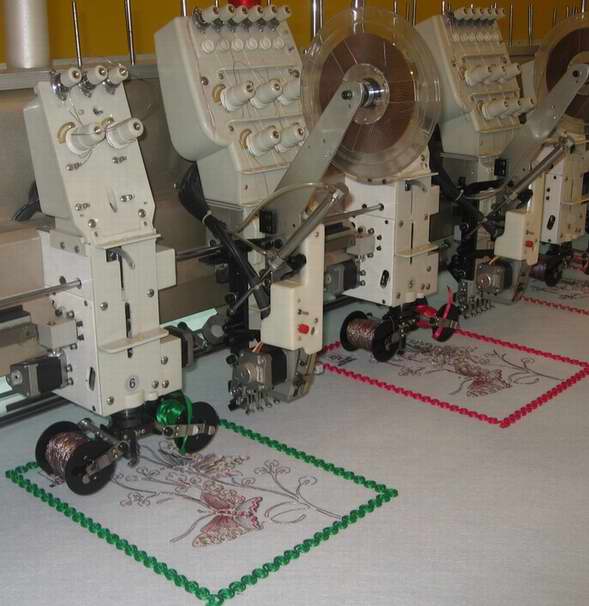

| Flat And Sequin And Cording Computerized Embroidery Machine(BLCYX-C112+JP612)
Machine models and specifications
Model Cording heads Flat Heads Cording Needles Flat Needles Head Distance (mm) EmbroideryArea (mm)
Dimension (mm)(LxWxH)
BLCYX-C106+P606 6 6 1 6 500 500×750 4850×1940×1600
BLCYX-C108+P608 8 8 1 6 500 500×750 5850×1940×1600
BLCYX-C110+P610 10 10 1 6 500 500×750 6850×1940×1600
BLCYX-C112+P612 12 12 1 6 500 500×750 7850×1940×1600
BLCYX-C106+JP606 6 6 1 6 500 500×750 4850×1940×1600
BLCYX-C108+JP608 8 8 1 6 500 500×750 5850×1940×1600
BLCYX-C110+JP610 10 10 1 6 500 500×750 6850×1940×1600
BLCYX-C112+JP612 12 12 1 6 500 500×750 7850×1940×1600
For above models,we can customize Y-axis 1000mm OR 1200mm.If adopt wooden package,the length and width of package size increase 300mm respectively based on machine size.
Technology Parameter
Name:Flat And Sequin And Cording Computerized Embroidery Machine
Application Range:Applied to fashion garments,wedding dress,handbags,long boots,piece goods with excellent performance.
Electric Controlling System Dahao 216 computerized controlling system,10 inches color LCD monitor
Memory Capacity:1000,000 stitches,99 patterns.
Memory Format:Read files in DST,Barundan,ZSK,Binary system,Ternary system format
Imput:USB port and 3.5 inches floppy disk that both can be compatible
Trimming system:Automatic trimming device
Stitches length:Ternary system:0.1~12.1mm; Binary system:0.1~12.7mm
Rotary Hook:Japanese original bobbin,bobbin case.
Driving:Reinforced linear guide rail driving design
Head:Digitalized head device with large guide plate saving adjusting to be horizontal manually.
Sewing Speed:250~850 rpms
Color changing:Automatic color changing device
Motor:Main shaft for flat heads: induction motor1.5KW
Main shaft for cording heads:1.0KW
X,Y stepping motor110(2pcs).
Power Consumption:3.0KW 50～60HZ
Voltage:Three phase 380V,Single phase 220V,Single phase 110V for options.
|
|
|
| |
