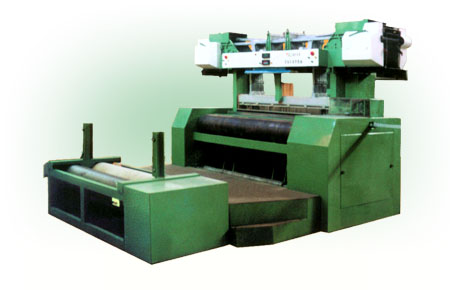

| Heavy GA727 Core Loom |
| Post Date :2008-03-25 |
| Expire Date :2009-03-25 |
 View Basket |
| Detailed Trade Lead Description |
|
This machine is designed on the basis of our nationality and adopting the technology of foreign rapier looms. It’s applicable to weave multi-layer three-dimensional fabrics, especially grade 4-12 integral cores for fire retardant conveyor used in the coal mine or at the wharf. This machine fills the gap of high-grade conveyor integral core loom in our country.
Main Structures and Technical Parameters:
1. Reed width (mm): 1600, 1900, 1600×2.
2. Beating-up: conjugate cam mechanism beating-up with slay-separating form.
3. Weft insertion: rigid single-rapier double-weft insertion; having weft accumulator and weft tension compensating mechanism.
4. Heald frame: 16 pcs
5. Let-off: positive let-off frame continuous let-off, adjustable tension.
6. Shedding: top-set double-dobby rigid shedding; pattern paper control; convenient to change varieties.
7. Overlocking: independent little shuttle overlocking mechanism.
8. Warp supplying: creel type, cheese continuous warp supplying.
9. Take-up: porcupine roller positive continuous take-up.
10. Scope of weft density: 120-200 picks/10cm
11. Lapping: independent superficial lapping; Max. package diameter 1600mm.
12. Electrical control: Adopting PLC control, it sets the buttons of starting, stopping, slowly forward and backward, take-up and roll-up, and has the function of detecting weft stopping, exit rapier, overlocking, various faults, loom speed and output; it is easy to maintain and operate.
13. Drive: main drive frequency stepless speed regulating.
14. Loom speed: 8-80rpm (economic speed 60rpm or so).
15. Overall dimension (not including creel) (mm):
length and height: 6360×2820;
width: 5430 (Model 160), 5730 (Model 190), 7600 (Model 160×2).
16. Weight: about 20T～30T
|
|
|
| |
