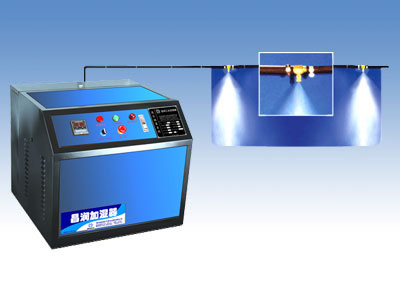

| High pressure micro fog humidifier unit |
| Post Date :2011-10-09 |
| Expire Date :2012-10-08 |
 View Basket |
| Detailed Trade Lead Description |
| Highlights:
1, built-in stainless steel tanks
2, the host integrated precision intelligent humidity control
3, each models can be customized to increase inverter system, multiple independent control, water heating, high precision filter
Basic functions: water power automatic protection, humidity control, motor overload, over-pressure protection.
Performance characteristics of high-pressure micro-mist units (760,820,860,880)
◆ wetting volume, per hour 90 - 900KG, the space to meet the 6000M the following humidification; power consumption, only 1.1 package of equipment - 2.2KW. Ultra-fine mist particles
◆ 1 - 10um, was smoke-like, wetting effect is excellent, piping random direction, humidification evenly.
◆ automatic control. Free manual control switch, high-precision humidity control regulation, unmanned management.
◆ Application of new technologies back to prevent water pipes, sedimentation, long moss, spray nozzle protection effect, there are only drops to accompany the nozzle device, the nozzle does not drip.
Equipped with multiple filters and filter boxes, effectively purify water, reduce nozzle clogging and increase operating efficiency.
◆ reaction rate only need 2 seconds will be able to stop wetting, wetting efficiency as high as 98%.
◆ The system uses imported piston pump can be a long time continuous operation, no power wearing parts, high dust environment in the run as usual. The system consists of the time control device, pressure device, reflux device, surge devices, water filtration devices, aerosol only drop nozzle, T-connectors, steel woven hose, the humidity controller and other components.
Applications: textile, knitting] packaging, printing, electronics, Schomburg plastic, chemical and other areas of humidifying needs of a wide range of imported piston
clean the purification after the pressure to 7Mpa sent to the pipe by high pressure special spray nozzle, spray mist and the air exchange of heat and moisture vapor leaving the water fog the purpose of which play a humidified air. This method is so wet wetting enthalpy manner, while also humidifying play a role in cooling. It has energy saving, safe, reliable, high performance and low cost advantages.
Technical parameters
Type CR-G760 CR-G820 CR-G860 CR-G880
piston Italy Italy Italy Italy
flow 8L/min 12L/min 16L/min 20L/min
working pressure ≥ 6Mpa ≥ 6Mpa ≥ 6Mpa ≥ 6Mpa
power 1.1KW 1.5KW 2.2KW 3.0KW
Dimensions 660 * 470 * 750mm 660 * 470 * 750mm 660 * 470 * 750mm 660 * 470 * 750mm
time control 1s - 1h 1s - 1h 1s - 1h 1s - 1h
humidity control 0-99.9RH% 0-99.9RH% 0-99.9RH% 0-99.9RH%
nozzle can be accessed by the number of ≤ 140 ≤ 240 ≤ 320 ≤ 400
use of the area ≤ 2000 m ≤ 4000 m ≤ 5000 m ≤ 7000 m
|
|
|
