| High Speed Computerized Embroidery Machine(BL-915H) |
| Post Date :2008-04-25 |
| Expire Date :2009-04-03 |
 View Basket |
| BL-915H |
| Detailed Trade Lead Description |

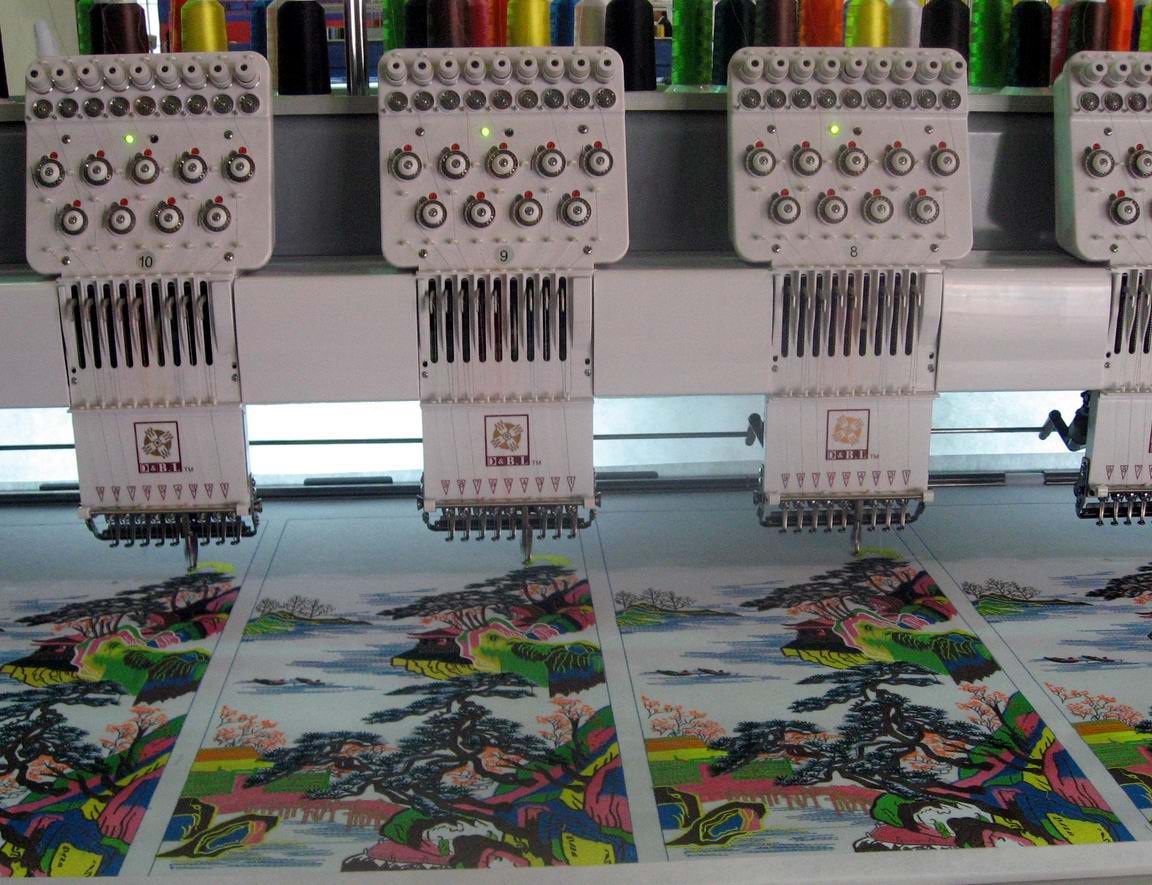

| High Speed Computerized Embroidery Machine(BL-915H)
Machine Models And Specifications
Model Heads Needles Head Distance(mm) Embroidery Area(mm) Dimension(mm)LxWxH
BL-920H 20 9 300 300×750／500 7600×1900×1600
BL-920H 20 9 300 300×1000／500 7600×2440×1600
BL-920H 20 9 300 300×1200／500 7600×2840×1600
BL-920H 20 9 275 275×680／500 7100×1800×1600
BL-918H 18 9 330 330×1200／500 7600×2840×1600
BL-918H 18 9 300 300×1000／500 7100×2440×1600
BL-918H 18 9 300 300×750／500 7100×1900×1600
BL-918H 18 9 300 300×680／500 7100×1800×1600
BL-915H 15 9 400 400×750／500 7600×1900×1600
BL-915H 15 9 400 400×680／500 7600×1800×1600
BL-915H 15 9 330 330×750／500 6600×1900×1600
BL-915H 15 9 330 330×680／500 6600×1800×1600
BL-915H 15 9 300 300×750／500 6100×1900×1600
BL-915H 15 9 300 300×680／500 6100×1800×1600
BL-912H 12 9 400 400×750／500 6450×1900×1600
BL-912H 12 9 400 400×680／500 6450×1800×1600
BL-912H 12 9 330 330×750／500 5500×1900×1600
BL-906H 6 9 330 330×750／500 3520×1900×1600
For above models we can customize 6(six) needles OR 12(twelve) needles,Y-axis 1000mm OR 1200mm.If adopt wooden package,the length and width of package size increase 300mm respectively based on machine size.
Technology Parameter
Name High Speed Flat Computerized Embroidery Machine（BL-915H）
Application range Suitable for high standard,high efficiency,exquisite embroidery and applied to garments,toys,hangbags,baby clothing,golf bags,shoes and hats broadly,it is popular both in china and overseas.
Electric controlling system Dahao BECS-216 computerized controlling system,10 inches color LCD monitor.
Memory Capacity
1000,000 stitches,99 patterns.
Memory format Read files in Tajima(DST),Barudan,ZSK,Binary system,Ternary system.
Imput
USB port and 3.5 inches floppy disk that both can be compatible.
Trimming System
Automatic trimming system
Stitches Length Ternary system:0.1~12.1mm; Binary system:0.1~12.7mm
Rotary Hook
Japanese original bobbion,bobbion case.
Driving System
Reinforced linear guide rail driving design.
Head
High speed head,Linear guide rail device.
Color changing
Automatic color changing system.
Sewing speed
250~1000rpms.
Motor Dahao 2KW servo motor; X,Y stepping motor130(2pcs).
Power consumption 2.5KW 50～60HZ.
Voltage Three phase 380V、Single phase 220V、Single phase110V for options.
|
|
|
| |
