| moq: 20pcs, use for: textile printing, model: MESH: 14 17 23 35 30 40 60H 80H |
| Detailed Trade Lead Description |
|

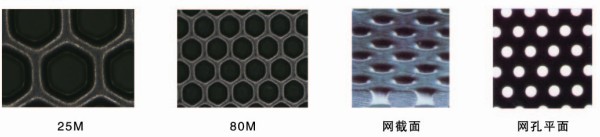

MESH: 14 17 23 35 30 40 60H 80H
Characteristic: Thick wall and good elasticity as well as big hole,sooth slide, no chips at all, and flows easily,it will no big pressure, and covers the surface of cloth evenly, so can guarantee the quality, it also benefit to equipment maintenance, and some color diffference avoids,widely uesd in pringting wallpaper ,lining cloth and coating,wax pringting,etc.
|
|
Mesh
|
Thickness(μm)
|
Open area(%)
|
Diameter(μm)
|
|
14
|
215
|
40
|
1140
|
|
17
|
215
|
40
|
945
|
|
23
|
215
|
38
|
680
|
|
25
|
215
|
35
|
600
|
|
30
|
215
|
30
|
465
|
|
40
|
200
|
30
|
330
|
|
60H
|
145
|
20
|
188
|
|
80H
|
125
|
18
|
136
|
|
Notes:
1. All screen with "V" the hole order is 45 angle.Especially used in printing pane and line, geometrical figure, etc.
2. All screen with "H" means extra thickness.
3. All kinds of screen can be used for 5~7 times repeatedly.
|
  |
|
|
| |
