Weaner flooring

Country of Origin:
Main Export Markets:

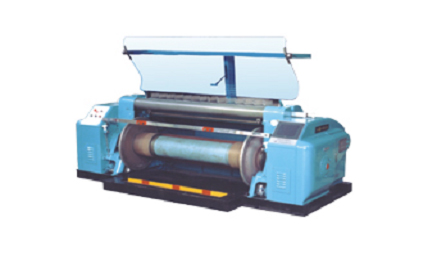

GA125 High Speed Direct Warping Machine
Post Date :2008-06-19
Expire Date :2009-06-19

View Basket

Detailed Trade Lead Description
1.Width: 1800mm (according to requirements)
2.Diameter of the yarn beam disc: ≤ 800m(accordance with the requirements)
3.Warping velocity: 100-1000 m/min
4.Unloading and loading means of
yarn beam: Pneumatic pressure type
5.The supporting means of the pressureroller 150 leaning lathe (sliding type)
6.Backrolling length 2400mm
7.Braking distance ≤3m(500m/min)
8.Error of the warp yarn length ≤0.2%
9.Bobbin creel: Rectangular, V shape, fixed type or rotary type
10.Creel ingot distances and the number of ingots 250X250mm,560(basic type)
11.Power rate of the main engine 11Kw, 4 poles
12.Weight of the principal unit4800Kg
13Weight of the yearn stand 3000Kg

  Products

More products from this category

剑杆织机

GA339 Series Warping

GA261 Detach Warping

GA251 Ball Warping M

GE210 Tricot Warping
  More

  Company Information
      Jiangyin No.4 Textile Machinery Manufacturer Co., Ltd is focus on all kinds of warping machine manufacturing. It has more than 40 years’ machine manufacturing history and is the biggest and best warping machine supplier in China. Now more than 65% domestic market has been covered by us. And many products are exported to more than 10 countries or areas. The company has very good technical background, plenty produce experience, advanced manufacturing process and excellent quality system. In 2001, it has passed the ISO9001-2000 system. Now this company has two lines and every line can produce 600 machines per year. During past years, the company once was honored "High technique company of Jiangsu Province", "AAA credit standing company", "Civilized company of Wuxi", and many other glories. The main products of the company include, GA163D high speed sectional warping machine, GA163C high speed sectional warping machine, SHGA215C high speed sectional warping machine, GA124 high speed batch warping machine, GA125 high speed batch warping machine, GA269 high speed batch warping machine, GE210 tricot warping machine, GA278 flat yarn warping machine, GA339 type series warping-sizing combination machine, and other more than 10 kinds of machines. These products could satisfy to all kinds of process of our customers. And they can match many kinds of weaving machine of different customers, such as rapier, air jet, wafer jet, slip shuttle and other kinds. Further more, in 2007 we succeed to develop SX400 weaving machine, which is mainly used to weave special fibers, such as glass fiber, carbon fiber, and many other kinds of industrial clothes. We welcome inquires from whole globe and hope to develop cooperation relationship with all friends of the world.
