Weaner flooring

Country of Origin:
Main Export Markets:

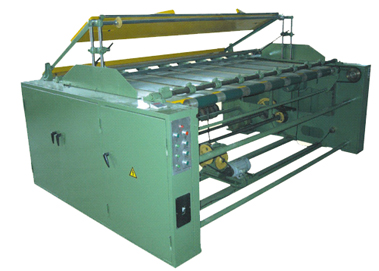

GA841 Model Hooking Machine
Post Date :2008-08-19
Expire Date :2009-08-19

View Basket

Detailed Trade Lead Description
Of series product type,automatic cloth folding machines used in weaving,dyeing and printing workshops can fold cloth or fabric deliver from cloth brusher or fabric inspecting machine into piece goods at a set length.
Three motors are used to control folding,beam elevating and cloth discharge device respectively.All these actions like sewing-up signal,delayed stopping and automatic beam lifing,blade setting,cloth discharging,beam falling and cloth folding are controlled electrically.Besides,there are two automats,one controls storage box(it operates while cloth exists,otherwise if stops),the other controls cloth delivery(it stops while cloth is on the folding table,otherwise it works).
Principles of automation:Switche control is used to command sewing-up signal and motors,and stroke switchs are equipped for coordinating each action.By adjusting positions of stroke switches,the duration of automatic processes could be controled as production required.
This electronically controlled machinery with ball bearing drive features convenience,stability and reliabillity in operation,low noise,novel apperance and rational construction.
MAIN SPECIFCATIONS

Table width(mm) 1100 , 1300 , 1600 , 1800 , 2000 , 2500 , 2800 , 3000
Length per fold(mm) 900~1020
Lifting of folding platen no less than 170mm
Folding speed 110~180 80 folds/min

200 65folds/min

250~300 40folds/min
Motors For folding 0.6kw 940r/min

For elevating 0.37kw 910r/min

For cloth discharging 0.6kw 940r/min
Overall dimensions(mm) GA841-110 2160*1790*1500

GA841-130 2160*1990*1550

GA841-160 2160*2290*1500

GA841-180 2160*2490*1500

GA841-200 2160*2690*1500

GA841-250 2160*3190*1500

GA841-280 2160*3490*1500

GA841-300 2160*3690*1500
Weigh,approx.(kg) GA841-110 1000

GA841-130 1140

GA841-160 1300

GA841-180 1440

GA841-200 1600

GA841-250 1780

GA841-280 1900

GA841-300 2140
