Weaner flooring

Country of Origin:
China
Main Export Markets:

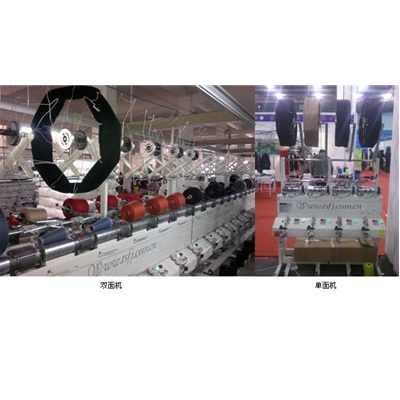

TS008P Hank to cone Winder
Post Date :2016-05-22
Expire Date :2015-12-16

View Basket

Detailed Trade Lead Description










Machine Application:

  TS008P Hank to cone winding machine is for winding yarns from Hank to Cone, they are applied to the processes such as warping, knitting and yarn combining etc..

Feature:










1. Drive: every spindle per motor



2. Winding speed: 300-500 M/min



3. Has function of auto stop when yarn break.



4. Package Dia≤ 250mm; Take-up Traverse: 150mm;



5. Each spindle with length counter;



6. Advanced control panel;














Technical parameters:






























































Bobbin type:




6"(170mm)




Layout




Double-side, can be 12-96 spindles




Power Supply




Three phases 380V 50/60HZ




Driving




Every spindle per motor




Power Comsumption




0.09KW/spindle




Take-up package




Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15




Yarn tension and waxing device




Every spindle has a yarn tension and waxing device




Auto Stop Device




Each spindle install auto stop device




Electronic Anti-Stack




Inverter control




Cleaner device




Every spindle has a Mechanical Knife yarn cleaner




Electronic Yarn Cleaner




Optional installed




Air Splicer




Optional installed




Lighting System




Optional installed




Dimensions




L 13700 x W 1050 x H 1650 mm
